OIM Bulk Load Utility - Load Role Membership.

To load Roles Membership in OIM, follow the below steps:



Step 1: Copy the “oimbulkload” folder from OIM machine to database machine (i.e. the machine where Oracle database is installed and used by OIM). If database is on the OIM machine itself then skip this step.



The oimbulkload folder is present in the following location:

          MW_HOME/Oracle_IDM1/server/db/oim/oracle/Utilities/oimbulkload





Step 2: Create the .csv file and place it in /oimbulkload/csv_files folder.

(Some of the sample csv files are present in / oimbulkload/sample_data folder which can be used as reference).





The Rolem.csv file looks like,



UGP_NAME,USR_LOGIN
CRM Administrator,jbaker
CRM Administrator,abadal
AD Admin,ukumar
AD Admin,akumar





Step 3: Create a .txt file named master.txt. Enter the name of the csv file which you want to use for bulk load operation and place it in /oimbulkload/csv_files folder.

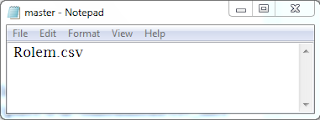

In this case, master.txt file looks like below:























Step 4: The following variables need to be set before we execute the bulk load script:



JAVA_HOME: path till jdk

eg: export JAVA_HOME=/home/oracle/jdk1.7.0_25

ORACLE_HOME: path till db_home

eg: /home/oracle/app/oracle/product/11.2.0/dbhome_1



Step 5: Stop Oracle Identity Manager server.



Step 6: Execute bulkload script



Go to /oimbulkload/scripts directory and run below command :

              ./oim_blkld.sh



It will prompt to ask which script to run.

Select option 5. Load Role Membership.





































Press enter if you have set ORACLE_HOME , otherwise give the path till DB_HOME.







Enter db details:

//HostIPAddress:Port/ServiceName





Enter the OIM schema user name.





Enter the OIM schema password.





Enter the OIM schema password again.



























Select the type of input which will be used to get data. In this case, we are taking data from a csv file, so enter 2.





















Enter the file which contains the list of csv files to be used as input. In this case, enter “master.txt”.



Enter the name of the tablespace to be used for creating custom objects. In this case, we are using the default tablespace (R2PS2_OIM)



It also gives us an option whether we want to insert log messages or not. Enter Y or N, as needed.



Role Memberships are created successfully in OIM.





 Happy Learning!!!
