Oracle Unified Directory(OUD) Connector Installation and Configuration.

Download the zip file : OID-11.1.1.6.0.zip from below link,

http://www.oracle.com/technetwork/middleware/id-mgmt/downloads/connectors-101674.html

Upload it to the following location :

           $MW_HOME/Oracle_IDM1/server/ConnectorDefaultDirectory

Unzip it in the same directory i.e. ConnectorDefaultDirectory and perform following steps :



Login to System Administrator Console using "xelsysadm" credential and click on "Manage Connector".





Click on "Install".





Select "ODSEE/OUD/LDAPV3 Connector 11.1.1.6.0" from Connector List.





Click on "Load".





Click on "Continue".





Click on "Exit".

Go to IT Resource tab.





Search LDAP.

 Click on edit icon.

Enter value for required parameters and click Update.

Go to Sandboxes as shown in below screen shot.



Go to Create Sandbox.



Give sandbox name and click on Save and Close.



Click on Form Designer tab.



Click on Create.



 Select Resource Type and enter Form Name and then click Create.



App form is created.



Go to Application Instance tab.



Click on Create as highlighted in below screen shot.



Enter value for highlighted fields and then click Save.



Application Instance is created.



Publish Sandbox.



Run the below schedulers to recon group and organization unit in OIM :

               1. LDAP Connector OU Lookup Reconciliation

               2. LDAP Connector Group Lookup Reconciliation

               3. Catalog Synchronisation Job.

Click on Scheduler tab.



Search  "LDAP Connector OU Lookup Reconciliation" and click on "Run Now".



Search  "LDAP Connector Group Lookup Reconciliation" and click on "Run Now".

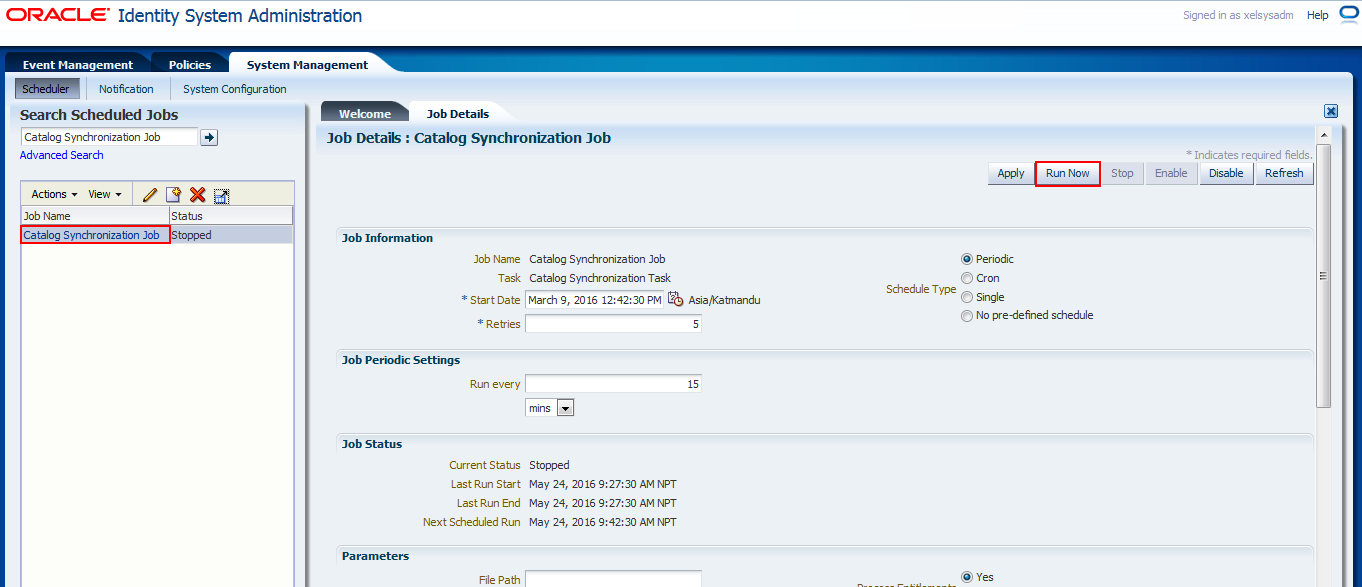

 Search  "Catalog Synchronization Job" and click on "Run Now".
